Make everything modular” is our lifelong mission and “make every customer satisfied” is our priority.In the pursuit of high quality products and services, we customise various types of modular cleanrooms for pharmaceutical-related companies in accordance with GMP, USP, ISO14644 and other regulations.

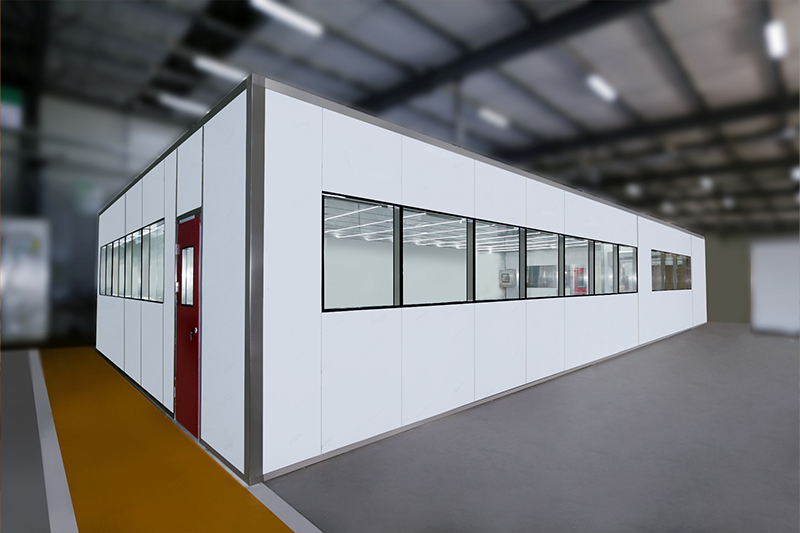

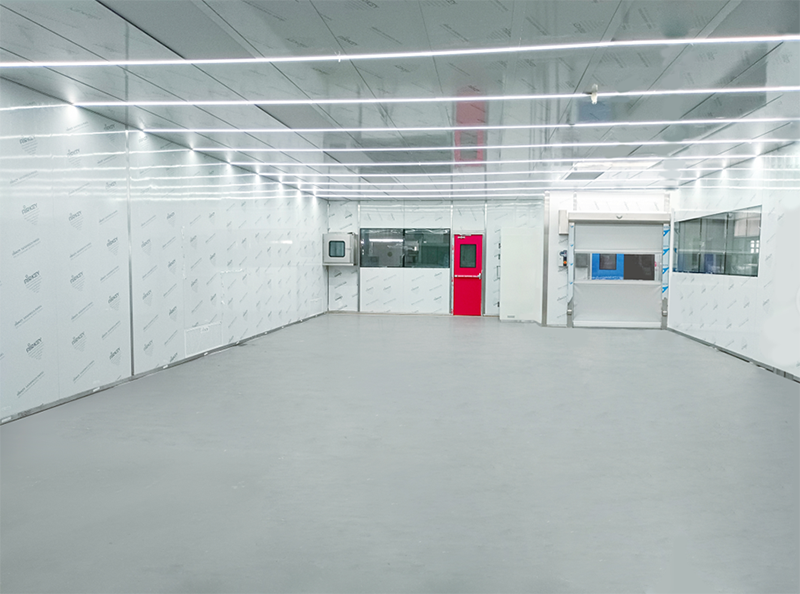

Due to Australian governmental requirements, the modular cleanroom wall needs to be 100mm thick sandwich panel. In order to observe operation inside, customer requests the windows need to be customised as connecting windows, flush with wall panels, bright and clear.

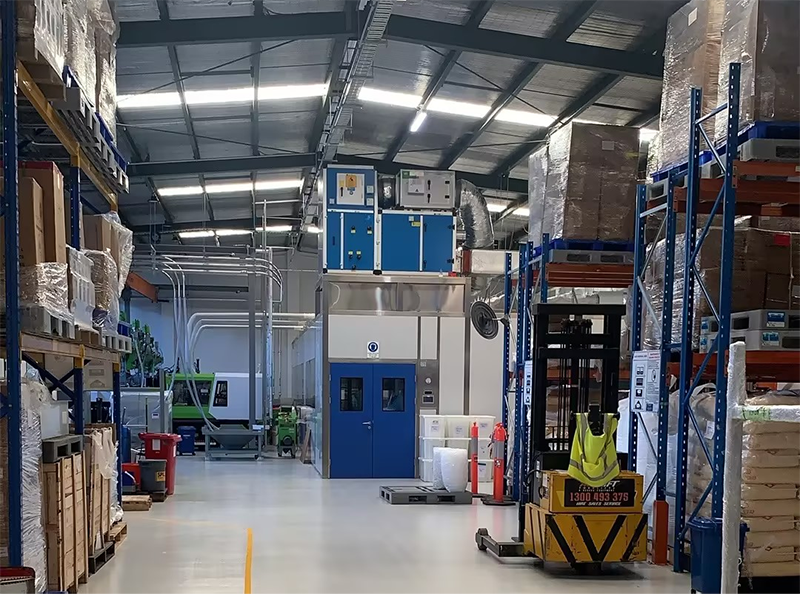

The heavy-weight aircon units need to be put on top pf cleanroom since there is no extra place at site, a big challenge for cleanroom structure.
As per Australian governmental requirements, customer specially asked an authorised third party to conduct load-bearing test on cleanroom structure, and the test results showed that it was qualified and reached the standard.

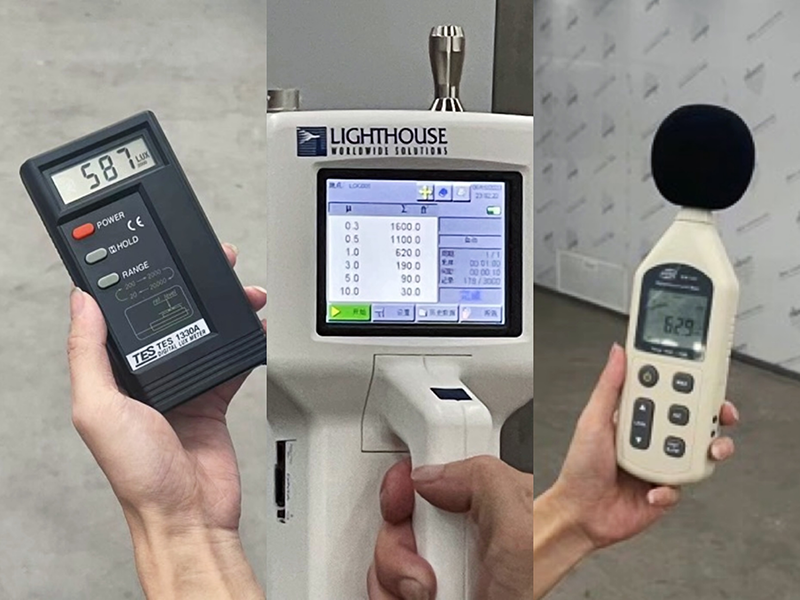

All parameters (class, temperature, etc) have passed the tests, well accepted by customers.
The Specifications of this project:
Project: medical appliance manufacturing cleanroom
Area: 128 m2
Inner height:2.9m
Class: ISO 7(Class 10000);
Design temperature/RH: 22-26°C/45-65%
Industry: Medical equipment
Location: Australia
