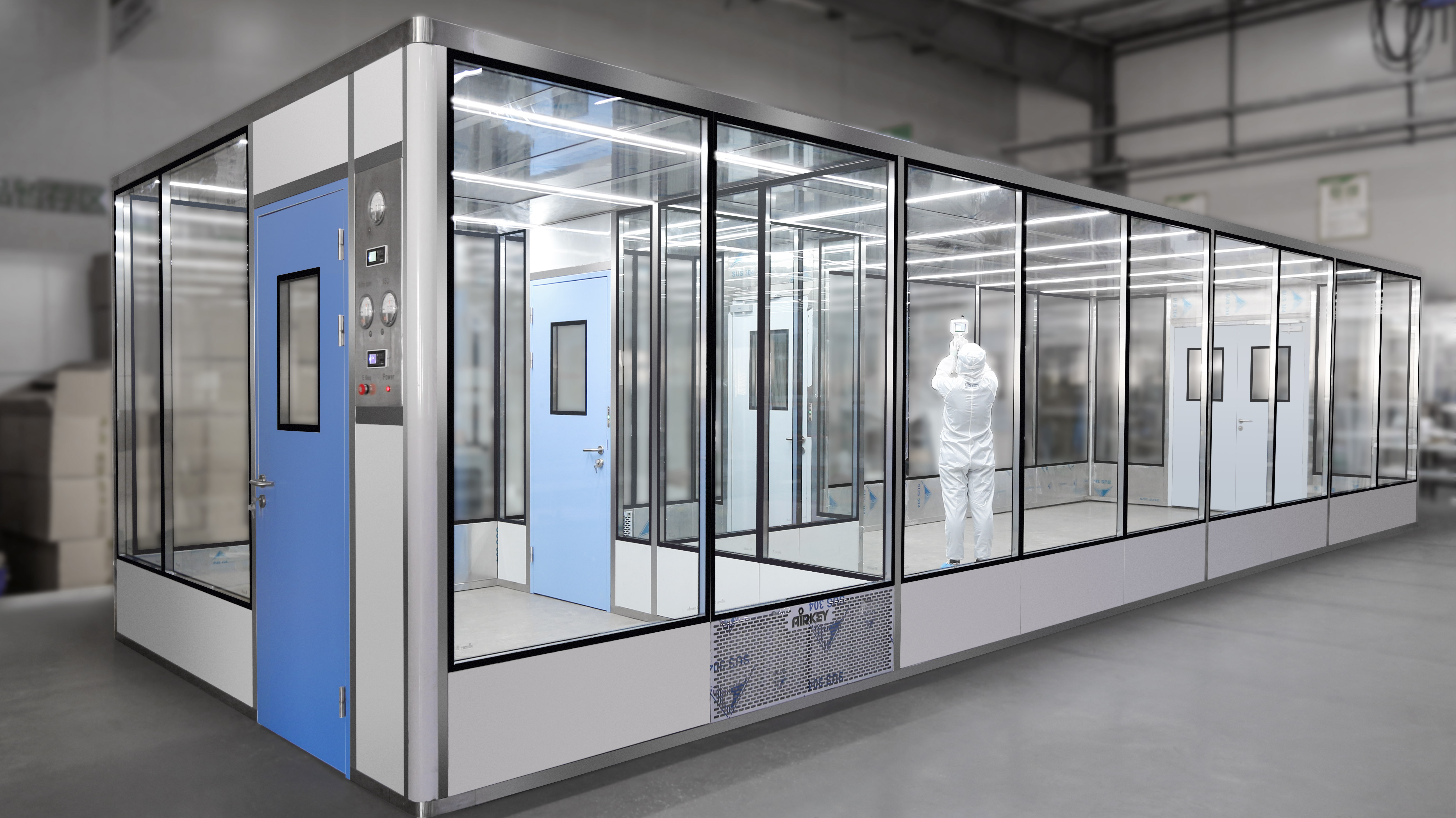

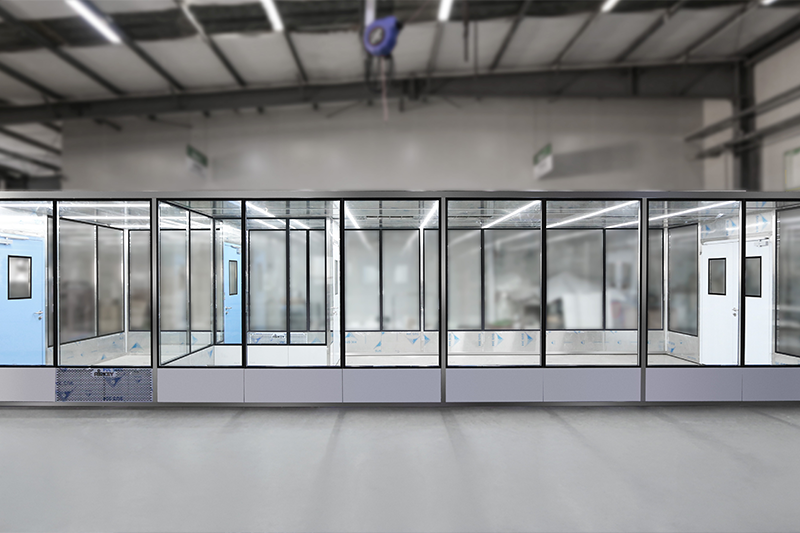

Airkey, a premier Chinese cleanroom solutions provider, has successfully commissioned a state-of-the-art biotechnology cleanroom for a leading U.S. life sciences company. This installation represents a significant milestone in international biotech infrastructure development, combining rigorous contamination control with enhanced operational ergonomics.
Purpose-built for biotech manufacturing
The newly operational cleanroom features specialized design elements critical for biotechnology applications:
-
Stainless steel 304 framework with seismic-resistant engineering
-
Stainless steel-clad (SS304) sandwich panel walls offering:
-
Superior corrosion resistance against chemical disinfectants
-
Seamless, non-porous surfaces for optimal cleanability
-
Structural integrity for heavy-duty bioprocessing equipment
-
-

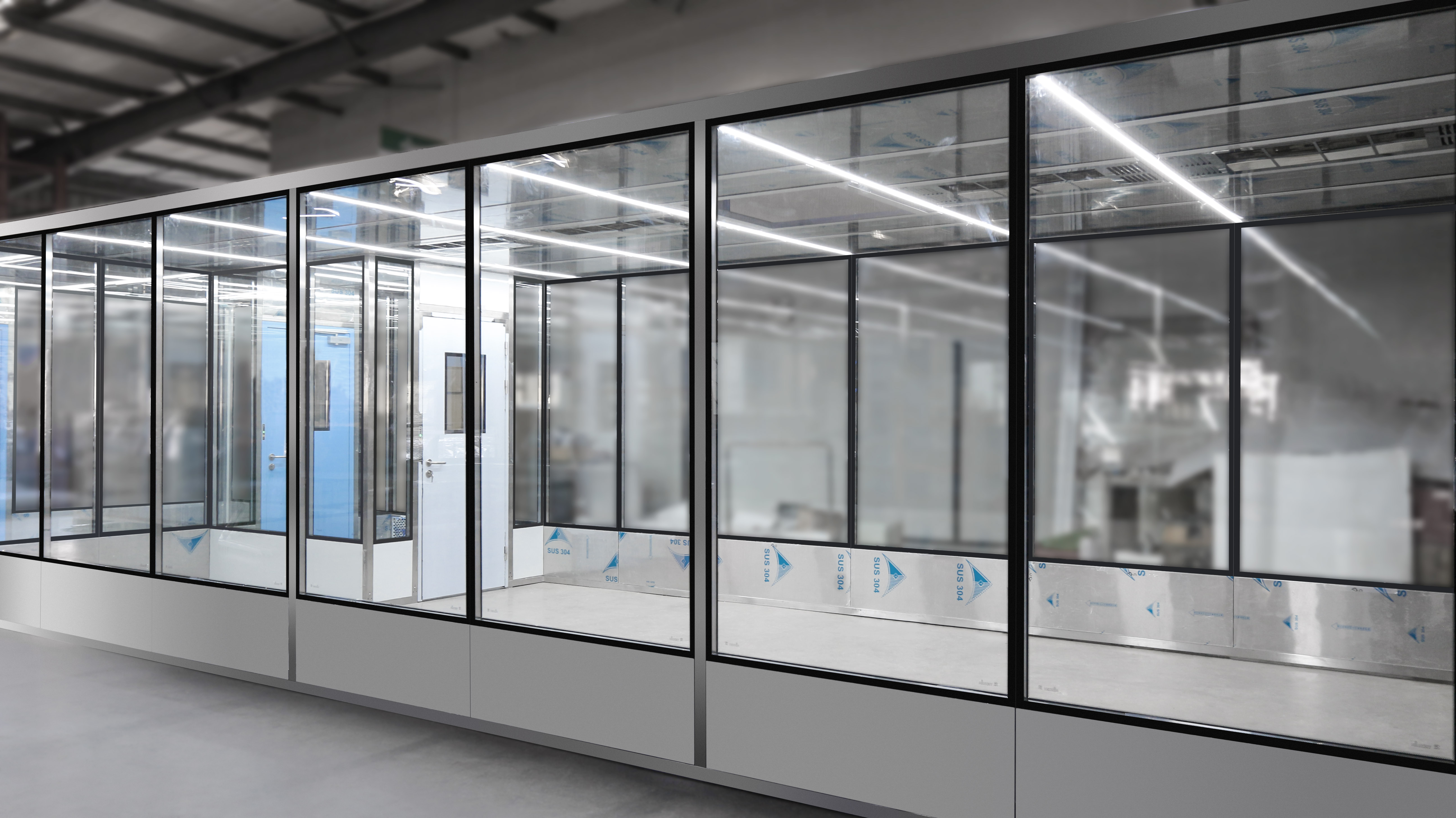

Large and continuous windows made of double glazed glass with high thermal insulation and corrosion resistance performance
-
Stainless steel-clad (SS304) doors for main process room to create a completely corrosion resistant workspace that could withstand aggressive sterilization protocols
Innovative environmental control system
The facility incorporates a dual-mode HVAC solution that exceeds ISO classification requirements:
-

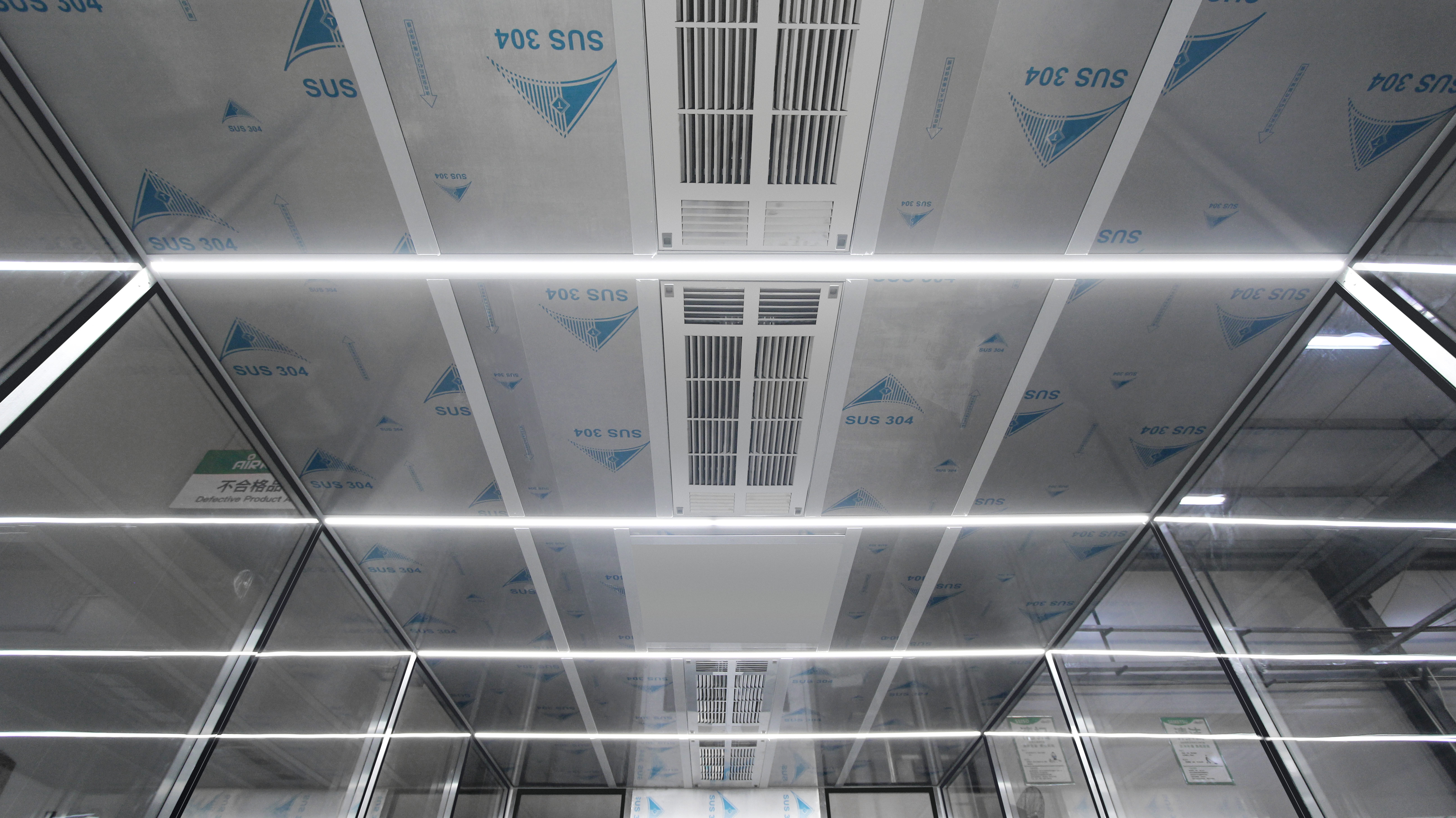

Ceiling-mounted Fan Filter Units (FFUs):
-
Provide laminar airflow with ≥99.99% filtration efficiency at 0.3μm
-
Maintain consistent ISO Class 7 conditions during operations
-
-
Cassette Split Air Conditioning:
-
Delivers precise temperature control (±0.5°C)
-
Energy recovery system reduces operational costs by 25%
-
Integrated humidity management for sensitive bioprocesses
-
-
Tailored control systems:
-
Control panel to regulate the air velocity
-
Pressure gauge for each room separately to monitor the differential pressure in real time
-
Human-centric design features
Understanding the extended work cycles in biotech facilities, the design incorporates:
-
Oversized double-glazed windows:
-
Maximize natural light to reduce operator fatigue
-
Maintain thermal insulation with double glazed glass
-
-
Smooth radius corners for improved cleanability:
-
Eliminating dead angles for cleaning
-
Preventing pollution resulting from duct accumulation
-
For detailed inquiry, please feel free to visit our website www.airkeyx.com
Specifications of this project:
Project: Biotech manufacturing modular cleanroom
Area: 38.5 m²
Inner height: 2.45 m
Class: ISO 7 (Class 10,000)
Industry: Biotech manufacturing
Location: USA
