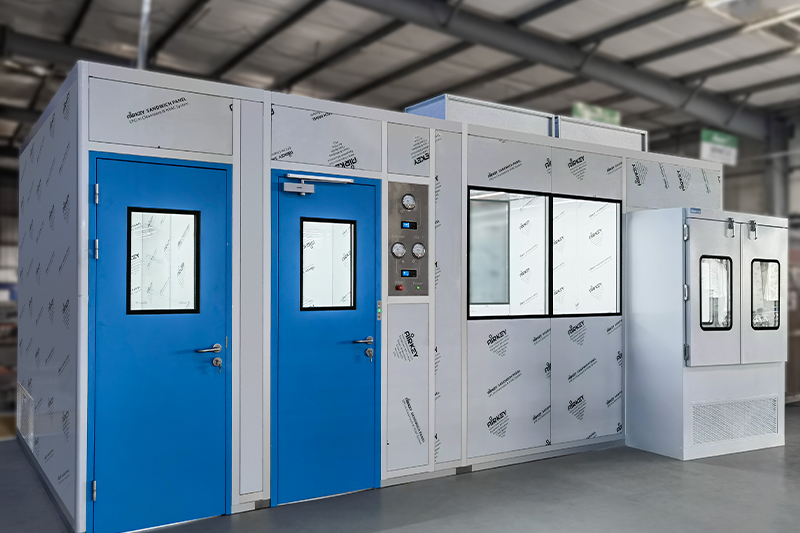

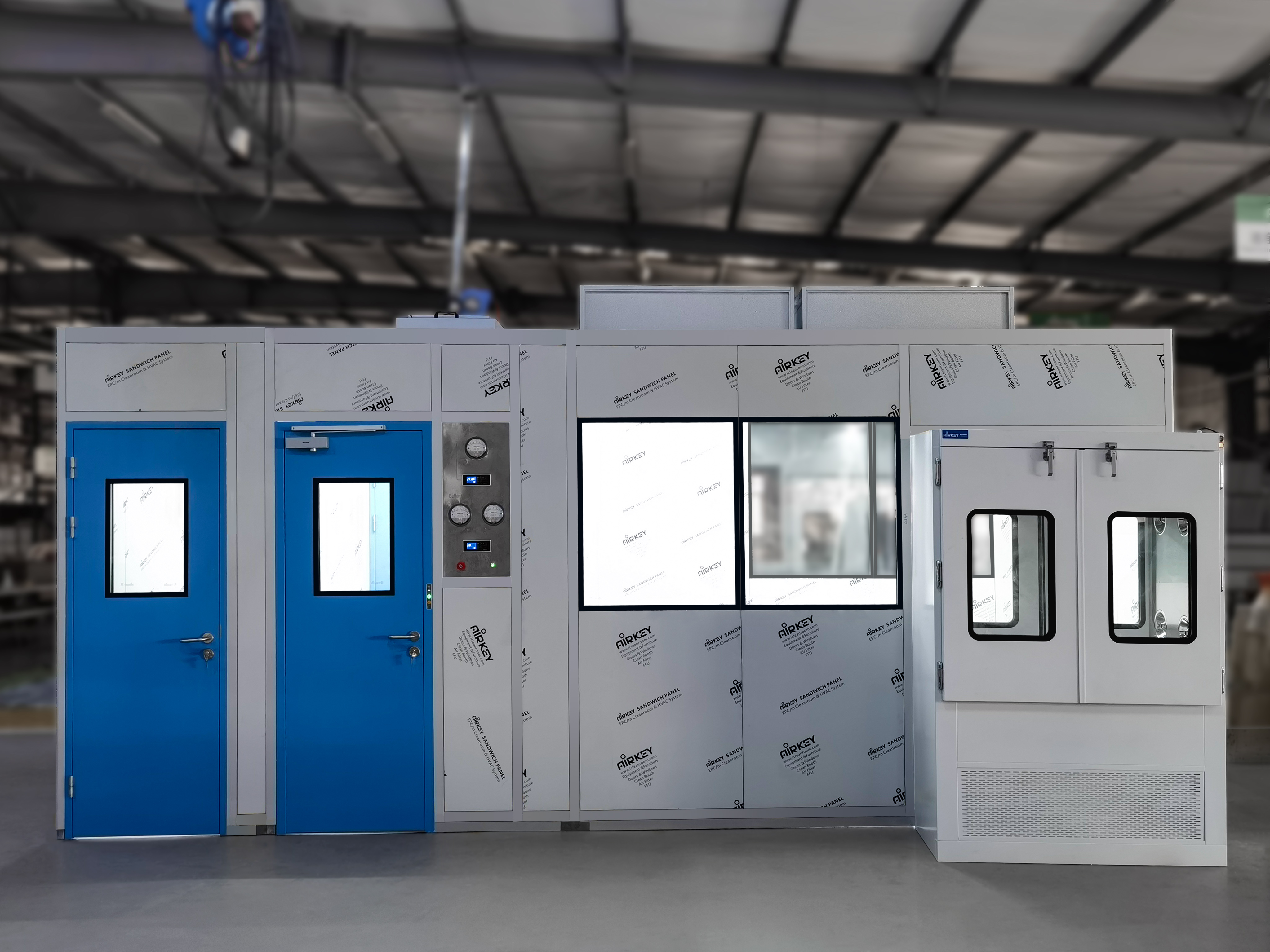

Airkey, a cleanroom expert based in China, takes pride in delivering high-performance cleanroom solutions tailored to our clients' needs. Our latest modular cleanroom project for our client in the Netherlands is a proving example. Designed specifically for the delicate process of laser head repair and maintenance, the cleanroom features:

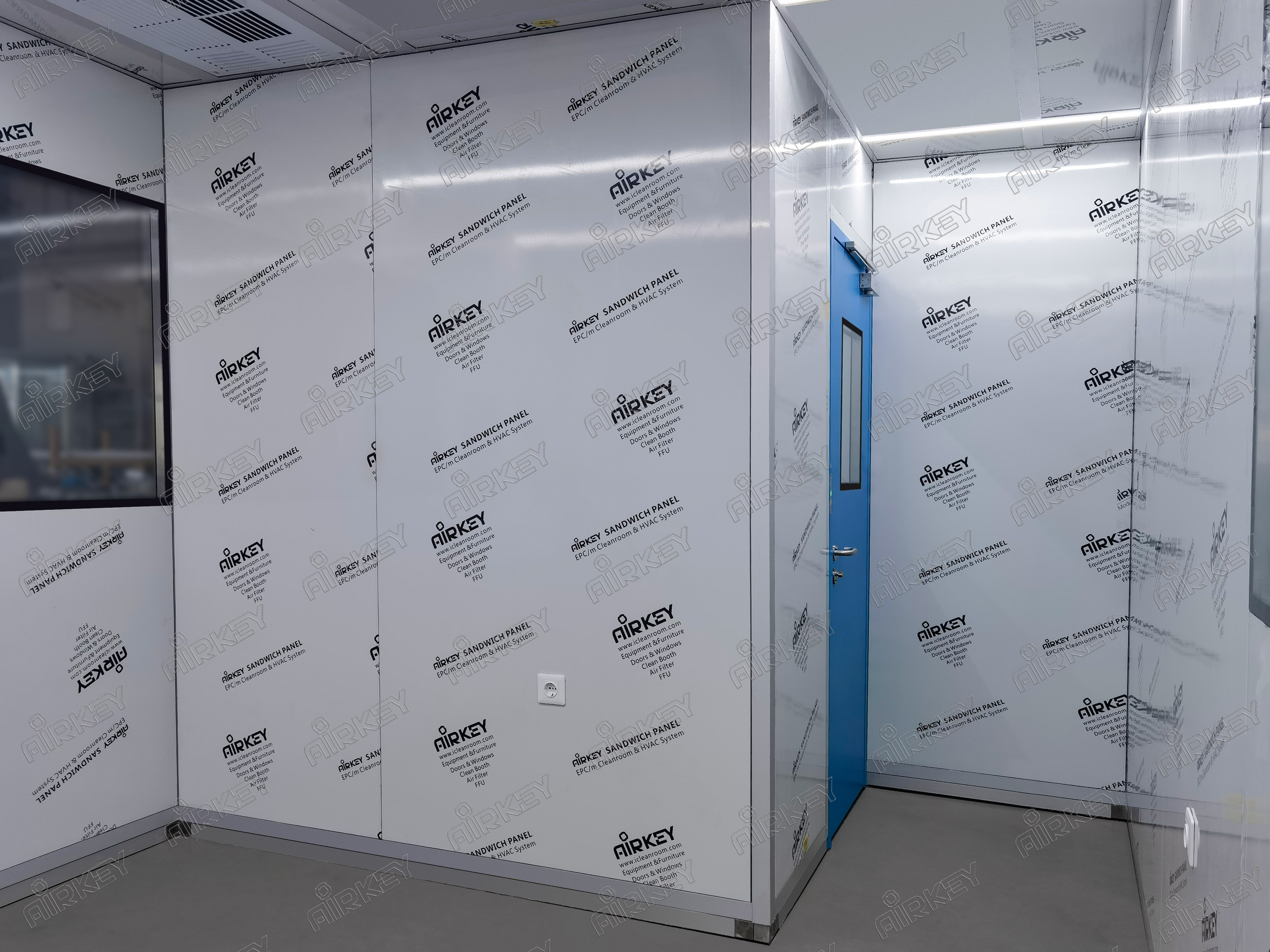

Robust construction: Aluminum alloy frames and high-quality sandwich panel walls, ensuring durability and airtightness by flush mounting.
ISO-classified zones: An ISO 5 (Class 100) main production room and ISO 7 (Class 10,000) change room and storage room, providing controlled environments for critical processes.
Natural light integration: Two large double-glazed windows, matching the building’s architectural design, allow ample natural light while maintaining cleanliness—enhancing both functionality and workspace aesthetics.
Specifically, the newly constructed cleanroom incorporates several unique elements:
1. Incorporates several unique elements:
To optimize air purity and energy savings, the cleanroom is equipped with:

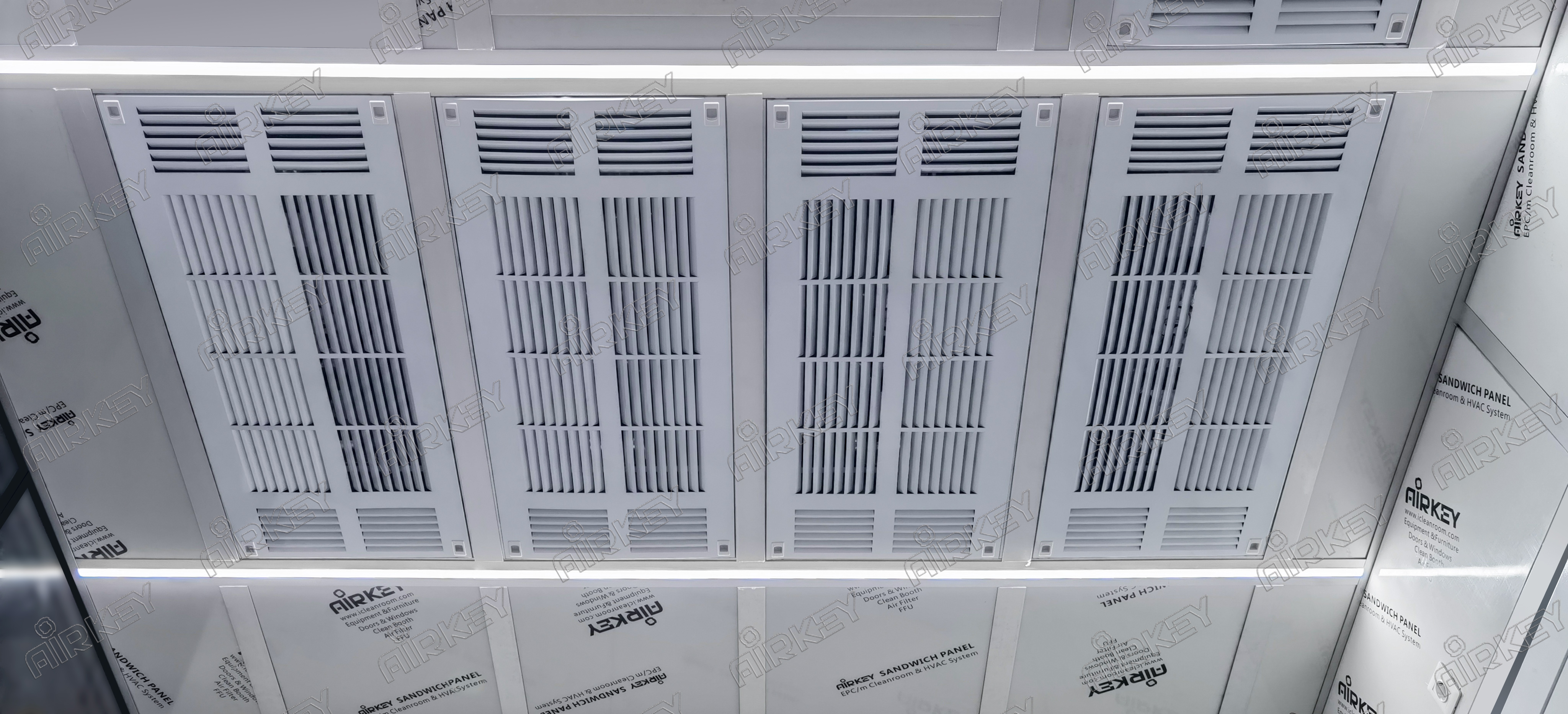

- Recirculating fan filter units (FFUs): Installed in ceiling grids to continuously filter and recirculate clean air.
- Cassette split air conditioner: Works in tandem with the FFUs to regulate temperature and airflow efficiently, reducing energy consumption.
- Combined system achieves 30% energy savings compared to conventional designs.
2. Customized material transfer solution:

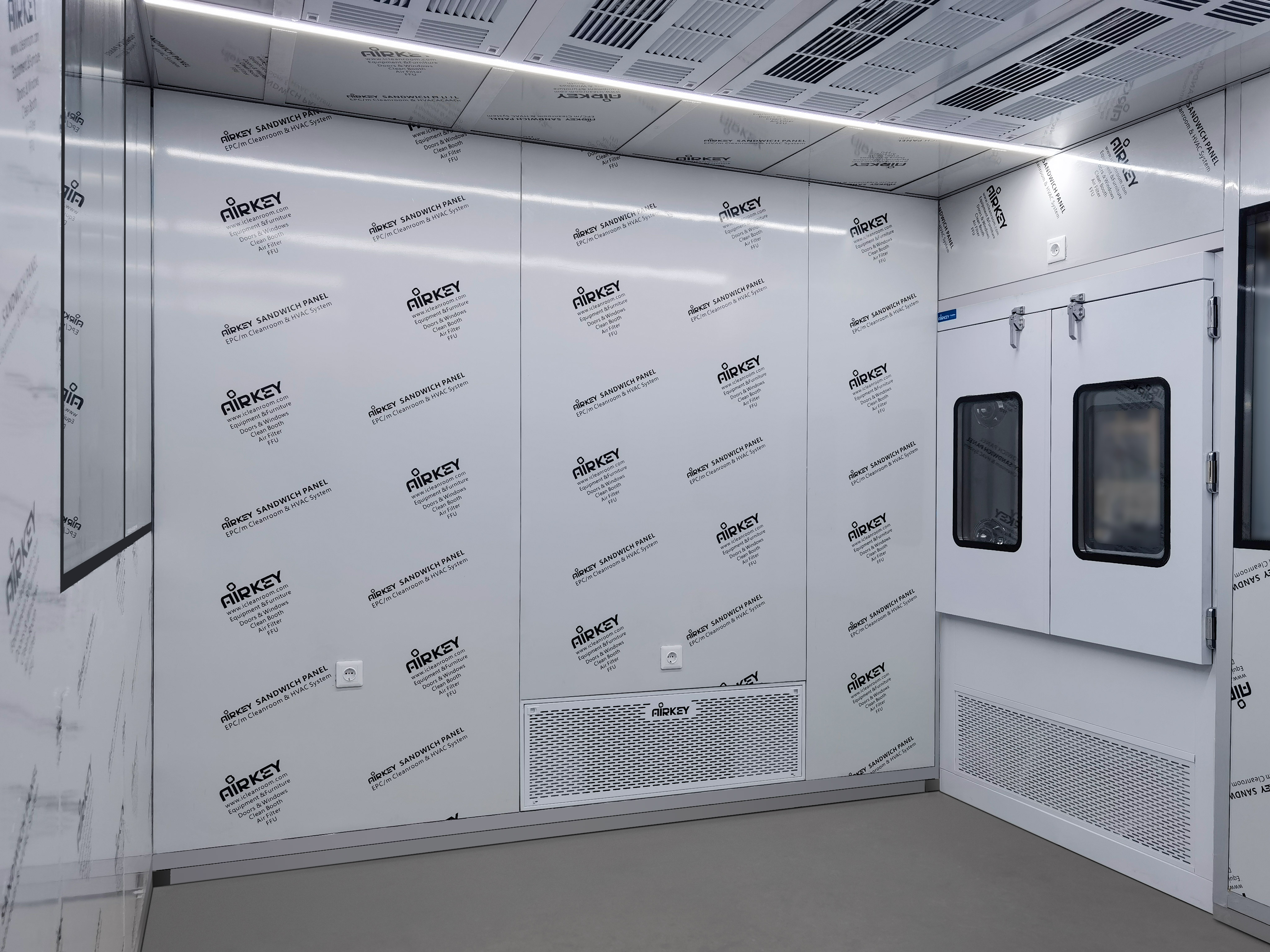

A key feature of this cleanroom is the large air shower pass box, custom-designed to accommodate the client’s specific material size requirements. The pass box includes:
- Double-door interlocking system: Ensures contamination-free transfer between zones.
- HEPA-filtered air shower: High-velocity HEPA filtration removes 99.99% of particles ≥0.3μm from materials before entry into the controlled environment.
- Stainless steel workspace: Provides durability and easy maintenance for long-term reliability.
3. Natural lighting integration:
Custom double-glazed windows matching building architecture provide:
- Optimal working conditions for technicians
- Energy savings through reduced artificial lighting needs
- Aesthetic harmony with existing structures
Technical expertise for demanding applications
"Our team understands the extreme sensitivity of laser optics to particulate contamination," said Mr Li, CEO at Airkey. "This installation showcases our ability to create environments that meet both technical specifications and operational efficiency requirements for high-tech industries."
The successful completion of this Dutch project follows Airkey's recent cleanroom installations for:
- Semiconductor manufacturing in Mexico
- Pharmaceutical research in USA
- Medical device production in UAE
The specifications of this project:
Project: Laser Head Repair Modular Cleanroom
Area: 18 m²
Inner height: 2.5 m
Class: ISO 5 & 7 (Class 100 & 10,000)
Industry: Laser Head Repair
Location: Netherlands
