Willis Whitfield invented the modern-day cleanroom, which revolutionised manufacturing in electronics and pharmaceuticals, made hospital operating rooms safer and helped further space exploration

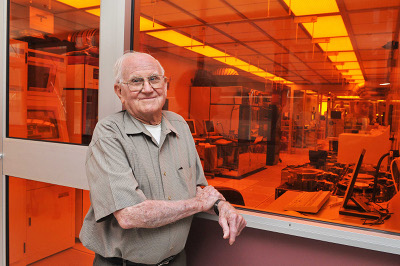

Whitfield lived long enough to see his invention mark its 50th anniversary this year. He pauses during a tour of a cleanroom in the Microsystems Engineering Sciences and Applications (MESA) complex at Sandia. (Photo by Randy Montoya)

Willis Whitfield, the inventor of the modern-day cleanroom, has died aged 92. His invention 50 years ago revolutionised manufacturing in electronics and pharmaceuticals, improved safety and helped further space exploration.

When Willis Whitfield invented the modern-day cleanroom 50 years ago, researchers and industrialists did not believe it at first. But within a few short years, US$50bn worth of laminar-flow cleanrooms were being built worldwide and the invention is used in hospitals, laboratories and manufacturing plants today.

The retired Sandia National Laboratories physicist, who died this month aged 92, was dubbed ‘Mr Clean’ by TIME Magazine at the time, but the travel, scientific presentations and accolades did not change the unassuming scientist, who was always modest about the invention that revolutionised manufacturing in electronics and pharmaceuticals, made hospital operating rooms safer and helped further space exploration.

Paul Hommert, president and labs director at Sandia, remembers Whitfield as a Sandia pioneer.

“Willis Whitfield represented the very best of Sandia. An exemplary researcher, a physicist who became an engineer’s engineer, Willis lived in that sweet spot where the best technical work is always done, at the intersection of skill, experience, training and intuition,” he said. “His breakthrough concept for a new kind of cleanroom, orders of magnitude more effective than anything else available in the early 1960s, came at just the right time to usher in a new era of electronics, healthcare, scientific research and space exploration. His impact was immense; even immeasurable.”

Gil Herrera, Sandia’s director of microsystems science, technology and components, also remembered Whitfield’s contribution to the work he oversees today.

“When Willis invented the cleanroom, he did so to improve the reliability of miniature mechanical components for Sandia systems. Little did he know his invention would enable the semiconductor industry, and thereby enable all modern electronics, computers and information technologies,” he said. “It has also enabled breakthroughs in biotechnology, nanotechnology, health sciences and healthcare.”

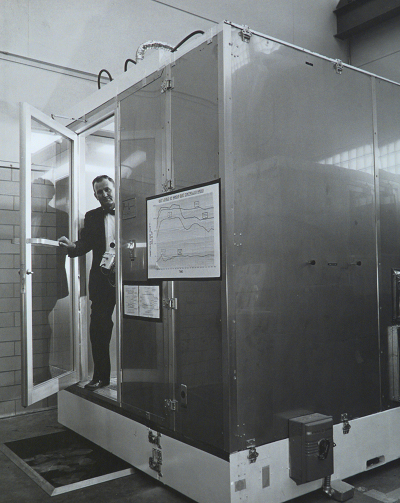

Cleanroom inventor Willis Whitfield, who passed away this month at age 92, steps out of a mobile cleanroom at Sandia National Laboratories, which could be transported to remote sites. (Photo courtesy of Sandia National Laboratories)

Cleanroom inventor Willis Whitfield, who passed away this month at age 92, steps out of a mobile cleanroom at Sandia National Laboratories, which could be transported to remote sites. (Photo courtesy of Sandia National Laboratories)

Whitfield, the son of Texas cotton farmers who fixed their own equipment, was asked to solve a manufacturing problem for Sandia, so he invented the laminar-flow cleanroom. With slight modifications, it is still the standard.

“He built it, found out no one had done it that way before, and said, ‘I don’t understand why [no one had invented it]. It’s so simple,’” recalled his son, Jim Whitfield. “I heard someone ask him how long did it take him to think of that idea and he said, ‘Five minutes, I just did the obvious thing.’”

Sandia historian Rebecca Ullrich said it wasn’t quite that easy.

Solving a problem

In 1959, nuclear weapons components — mainly mechanical switching parts — were becoming smaller and microscopic dust particles were preventing Sandia from achieving the quality the laboratories needed, so Whitfield’s supervisors asked his group to find a solution.

“While Whitfield might have come up with the idea quickly, months of research led up to that moment of discovery,” she said. Whitfield discovered the practice at the time was to tightly seal cleanrooms, wear protective clothing and vacuum often. Still, the airflow was turbulent in existing cleanrooms and particles introduced were not removed. These measures didn’t create the necessary conditions for manufacturing close-tolerance parts, Ullrich added.

Whitfield looked at blowers, vents, grading and the cost per square foot to build his invention, so it would be something people could afford.

By the end of 1960, Whitfield had his initial drawings for a 10-by-6 cleanroom. His solution was to constantly flush out the room with highly filtered air. In that first model, Whitfield designed a workbench along one wall. Clean air entered the room from a bank of filters that were 99.97% efficient in removing particles larger than 0.3 microns. For example, cigarette smoke blown in one side comes out of the other as clean air, according to a 1962 Sandia Lab News article.

The air is circulated in the room at a rate of 4,000-cubit-foot or about 10 changes of air per minute, an amount of air movement that is barely perceptible to the workers inside. The linear speed of air is slightly more than 1mph, which is about the same as that felt walking through a still room.

Jim Whitfield remembers his father’s story about that meeting: “The numbers he was showing were unbelievable. At this conference, people were telling him that can’t be right

In a later modification, the air was passed down over the work area instead of across, assisted by gravity in carrying troublesome particles into the floor, which was covered with grating. Filters underneath clean the air and it is circulated back around to re-enter the room. The constant flow of clean air performs a sweeping function.

When the first cleanroom was tested “the dust counters went to nearly zero. We thought they were broken,” Whitfield said in a 1993 videotaped interview at Sandia.

The laminar-flow cleanroom created a work environment that was more than 1,000 times cleaner than the cleanrooms in use at the time.

According to tests then, the laminar-flow cleanroom’s work area contained an average of 750 dust particles one-third of a micron in size or larger per cubic foot of air. That is compared with average dust counts of more than 1 million particles per cubic foot of air in one of the best conventional cleanrooms in use at the time.

Bringing the cleanroom to the world

Whitfield gave his initial paper on what was then called the “ultra-cleanroom” at the Institute of Environmental Sciences meeting in Chicago in 1962.

After the meeting, Whitfield’s phone never stopped ringing, Ullrich said. But at a packed talk about a year later at the American Society for Contamination Control in Boston, manufacturers challenged the invention’s claims, accusing Whitfield of perpetuating a hoax.

Jim Whitfield remembers his father’s story about that meeting: “The numbers he was showing were unbelievable. At this conference, people were telling him that can’t be right. Then, one of his colleagues [from Bell Labs] got up and said he thought Whitfield was wrong. His numbers are 10 times too conservative. So, he knew at that point that it was a dramatic shift in the technology.”

Others recognized it too, and within a couple years, $50bn worth of cleanrooms had been built worldwide.

“When you have something that everyone wants, they come to you,” Whitfield said in a 1993 interview. “The desperate need for this accelerated the gap between development and production drastically.”

RCA and General Motors were early adopters of the cleanroom, and the invention revolutionised the pharmaceuticals and microelectronics industries, Ullrich said.

Bataan Memorial Methodist Hospital in Albuquerque, which later became Lovelace Medical Center, was the first hospital to use laminar-flow cleanrooms in its operating rooms to prevent infections. And the Houston hospital, now known as the University of Texas MD Anderson Cancer Center, built 22 cleanrooms to prevent infections in leukaemia patients undergoing chemotherapy, Whitfield said in 1993.

Not fazed by fame

Whitfield eventually worked with NASA to provide planetary quarantines during missions to the moon and Mars and spacecraft sterilisation techniques. But fame did not change him.

“He’s a nice guy, very honest, very straightforward,” Ullrich said. “He’s very modest about it. His values mean he’s going to do the right thing. He makes sure other people share credit for things.”

The cleanroom design also made it possible for Sandia to standardise cleanrooms for the first time in 1963 for the federal government.

Whitfield lived to see his invention turn 50 this year, but was unable to give an interview, so his son spoke for him, saying: “I’m sure in his heart, he feels very satisfied that he’s made such a big and positive impact on society.”
