Flextraction introduces fume extraction cabinets

Published: 11-Nov-2011
Containment Manufacturing

For applications where operators are exposed to dust and solvents

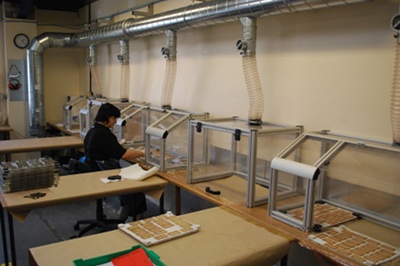

A new range of fume extraction cabinets (FEC) from Flextraction, a UK supplier and manufacturer of Local Exhaust Ventilation (LEV) systems, are for use where operators are exposed to low dust emissions and small quantities of solvents and chemicals. They can also be used to perform weighing operations.

The range comprises 6 models, FEC 350, FEC 500, FEC 600, FEC HD, FEC LD and FEC SD. Each is made from extruded aluminium profiles in a corrosion protected anodised natural finish with clear polycarbonate infill panels. They are supplied fully assembled with the spigot location normally at the rear of each cabinet and with a spigot size to suit the customer.

The FEC 350, FEC 500 and FEC 600 feature an open frontal face access, ranging from 350mmm x 230mm to 600mm x 325mm. They are connected to separate fans or mobile filters with airflow velocities ranging from 0.3m/s (90m3/hr) to 1.0m/s (700 m3/hr).

The FEC HD, FEC SD and FEC LD all have a hinged door to provide an open frontal access. The standard FED HD measures 800mm (length) x 750mm (width) x 600mm (height), with a working access of 720mm x 560mm when open.

The FEC SD and FEC LD models are two angular cabinets, which can be designed and manufactured to suit the application.

  • Companies:
  • Flextraction Ltd.
See more

You may also like

Containment

Flextraction introduces laminar flow booth for industrial applications

Read more
Suitable for use in environments where dust generation is unavoidable, cannot be contained or collected at source

Trending Articles

  1. Tesla’s ‘Terafab’ chip factory to launch within four days The EV giant has begun preparations to produce in‑house AI chips with launch of a “gigantic” fab
  2. Incubating settle plates: Understanding growth patterns and when things are going wrong Steven Brimble from Cherwell Laboratories discusses why it is important to your environmental monitoring regime to understand growth characteristics of common cleanroom contaminants and how morphology shifts over time on various media
  3. Cleanroom Technology Awards 2026: The winners The winners of the Cleanroom Technology Awards 2026 have now been revealed. The 2026 edition brought together some of the most forward-thinking organisations in the industry, recognising innovation, technical excellence, and impactful advancements across cleanroom design, operation, and technology
  4. ANSI/NSF 49:2019 vs EN 12469:2001: How do they compare? There are variations in biosafety cabinet standards, but how do their instructions differ, and should you be aiming higher? Ivan Kaliman from Zwei Ingenieria explains
  5. TSS expands with acquisition of four cleanroom service providers Technical Safety Services has acquired these cleanroom service providers in part to enable it to move ‘up-stream’ in a facility’s life cycle and now support critical containment infrastructure from the early design phase all the way through to decommissioning

Upcoming event

Cleanroom Technology Conference UK

20-21 May 2026 | Conference and Exhibition | Birmingham, UK See all

You may also like

Containment

Flextraction introduces laminar flow booth for industrial applications

Suitable for use in environments where dust generation is unavoidable, cannot be contained or collected at source
Containment

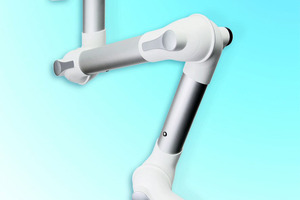

New laboratory fume extraction system is quietly flexible
