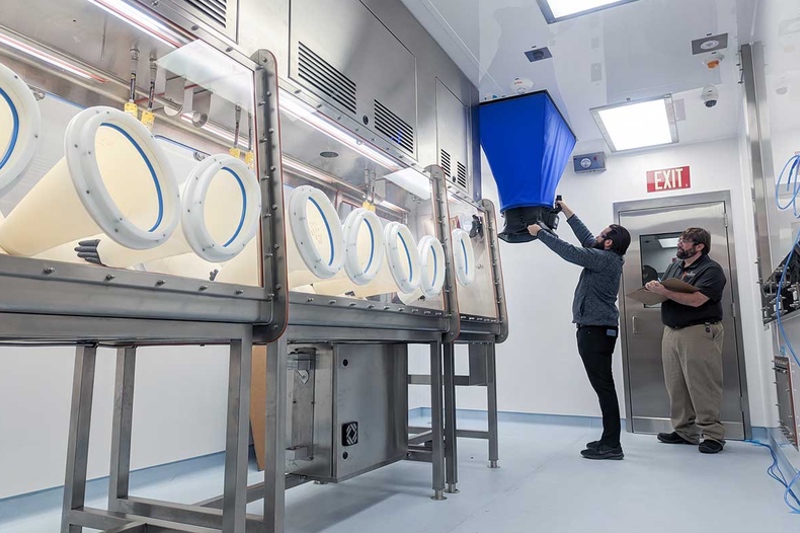

What airflow design models are there for cleanrooms?

Sean Bartholomew and Matthew Penny from Germfree explain how airflow designs connect to overall facility flow, influencing the movement of personnel and materials within a cleanroom

You need to be a subscriber to read this article.
Click here to find out more.

During the facility design phase of a new cleanroom project, one of the most critical steps is defining facility flow. This is how personnel and materials will enter, move through, and exit critical spaces.

The US FDA, EMA, and other regulatory bodies provide guidance to reduce contamination risk, but they generally do not prescribe a facility layout that fits every application.

Depending on the product type and target market, there may be expectations for segregation of personnel, material, and waste streams within a holistic contamination control strategy.

This is especially true for airflow, where the movement of air through a facility is both a reflection of and a driving force behind the broader personnel and material flow strategy; in higher-classification environments such as aseptic fill-finish suites, unidirectional airflow patterns are deliberately engineered to mirror and reinforce one-way movement.

Here we will look at unidirectional and bidirectional flow

Unidirectional flow

Unidirectional flow is a facility design strategy in which staff and materials move through the cleanroom in a single direction. This design helps prevent finished product from crossing paths with anything that risks contaminating it, including raw materials, waste, kitting areas, or locker rooms.

Layouts that follow this approach often include dedicated supply and return corridors, separate entry and exit airlocks, and a progressive transition through cleanliness zones into and out of critical areas.

Airflow strategy should be selected based on the criticality of the operation and the contamination control strategy.

Airflow strategy should be selected based on the criticality of the operation and the contamination control strategy

For Grade A / ISO Class 5 critical zones where product or sterile components are exposed, unidirectional airflow (UDAF, often referred to as “laminar”) is typically expected, and airflow visualisation studies should demonstrate first-air protection and effective sweep-away behaviour.

Surrounding background areas (e.g, Grade B/C, as applicable) commonly use HEPA-filtered mixed (non-unidirectional) airflow with appropriate recovery, pressure differentials, and verified airflow patterns to support the overall environmental control strategy.

Unidirectional flow eliminates the dual use of airlocks and will often employ certain design features to minimise risk of personnel procedure errors. One useful approach includes magnetic or electrical interlocks to prevent two airlock doors from opening at the same time. That typically avoids use of Wave-To-Open devices on both sides of the door to prevent any personnel from moving back through the entry side.

When designing for unidirectional flow, it’s essential that your personnel and material entry and exit points are fully integrated into the overall facility layout. Kitting and staging areas should align closely with supply corridors, while material exit points should be positioned near cGMP biostorage, filling suites, or clean shipping areas.

Bidirectional flow

Bidirectional flow facilities rely more heavily on HVAC design and air pressure relationships to compensate for the shared movement of personnel and materials through common pathways. Rather than physically separating clean and dirty streams, the airflow strategy recreate this.
