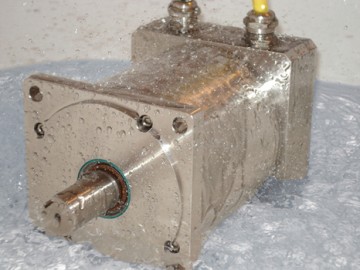

The SSeries units incorporate CMC’s MDM high-energy brushless servo technology. They are manufactured in standard metric frame sizes and deliver the industry's highest available torque density, with stall torque 35% to 40% higher than conventional designs, the Daventry-based company says. This is achieved through a design that integrates cutcore, segmented stator lamination technology in a high efficiency heat transfer capsule.
The SSeries servomotors are also easy to install owing to strain-relieved cables with stripped ends. Feedback options are straightforward, with optional encoder line counts up to 5,000ppr available for all configurations.
Thermostats on the motor windings are a standard feature on the SSeries motors, and a standard motorbrake is also available across the product line. In addition, customised mounting and shaft options are available for all supported configurations.
Contact Gerard Bush T +44 1327 307600 {encode="gerardb@inmoco.co.uk" title="gerardb@inmoco.co.uk"} www.inmoco.co.uk
