Bürkert launches latest hygienic diaphragm valve

Published: 7-Feb-2017

Bürkert looks at how process valve manufacturing developments have seen a leap in hygienic design

You need to be a subscriber to read this article.
Click here to find out more.

Bürkert has recently launched the latest incarnation of its diaphragm valve body that has been manufactured using hydroforming technology to deliver a number of benefits.

Designed for use in hygienic process applications, the new tube valve body meets the latest standards for pharmaceutical, cosmetic as well as food and beverage industries.

Fluid control systems within hygienic applications demand high standards in terms of cleanability which can be affected by a number of design characteristics.

The base material is normally 316L stainless steel which requires an excellent surface finish to maximise the efficiency of the clean-in-place (CIP) process that is used to sterilise the process pipework. Coupled with excellent thermal properties, the design of such valves has become a complex process.

Bürkert has delivered the next evolution of valve manufacture by patenting a new procedure to create process valves using hydroforming technology. This has significantly reduced the amount of material used as well as allowing uniformly high quality laser welds that do not add any further material to the component.

The process starts with the flange, which is laser cut and milled, and the tube, both of which are from 316L stainless steel. The tube is placed in a mould, filled with a water-oil emulsion and subjected to around 3,000 bars of pressure to produce the required flow path to and from the weir.

The flange and tube are then laser welded together before the new component is annealed to relieve residual stress within the material. This heat treatment process also increases the durability of the material by improving the corrosion resistance. This is enhanced by precision machining of the surfaces of the flange before the final polishing stages are completed.

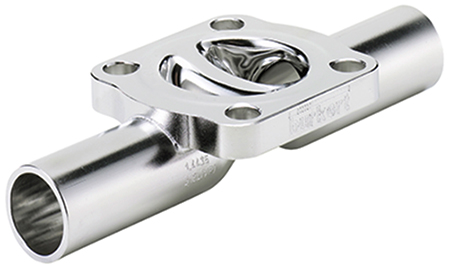

Burkert346 – Tube valve body 3rd generation

Burkert346 – Tube valve body 3rd generation

In the past, the polishing process may have been completed by hand using small electric polishing wheels, which can be rather labour intensive and time consuming. This process is now automated and uses an abrasive paste that is repeatedly pumped through the valve body to achieve a surface finish of less than 0.4µm. This produces a very uniform surface which is then electro-polished to give a near mirror finish for all areas that come into contact with the process media.

Ian Webster, Hygienic Processing Segment Manager at Bürkert UK, says: ‘This new manufacturing process allows us to manufacture variants that are as much as 75% lighter than forged housings. The reduced volume of material means that the energy requirement for both heating and cooling during cleaning processes is also greatly reduced.

”The hygienic design and cleanability of the new valve body has been shown to be comparable with that of stainless process pipework and has been certified under EHEDG Type EL, Class I. By reducing energy requirements and downtime for cleansing processes, the new Bürkert tube valve body has the potential to optimise process efficiency for a wide range of hygienic applications.”

The innovative manufacturing technique employed by Bürkert also has a greatly reduced carbon footprint, making it more environmentally friendly. An independent study showed that when manufacturing a DN25 cast valve body, almost 7,000 grams of CO2 were produced, compared to the hydroformed valve body which only generates 2,000 grams.

The new tube valve body can be used with EPDM or PTFE diaphragms, both of which have excellent hygiene and chemical resistance qualities, and coupled with Type 2031 CLASSIC pneumatic actuator or a Type 3233 manual actuator to deliver process control solutions for any number of hygienic applications.

Initially, the valve tube bodies will be available in various size variants, suitable for welded connections.

www.burkert.co.uk
The valve body has been  has been certified under EHEDG Type EL, Class I

The valve body has been has been certified under EHEDG Type EL, Class I
